Xr

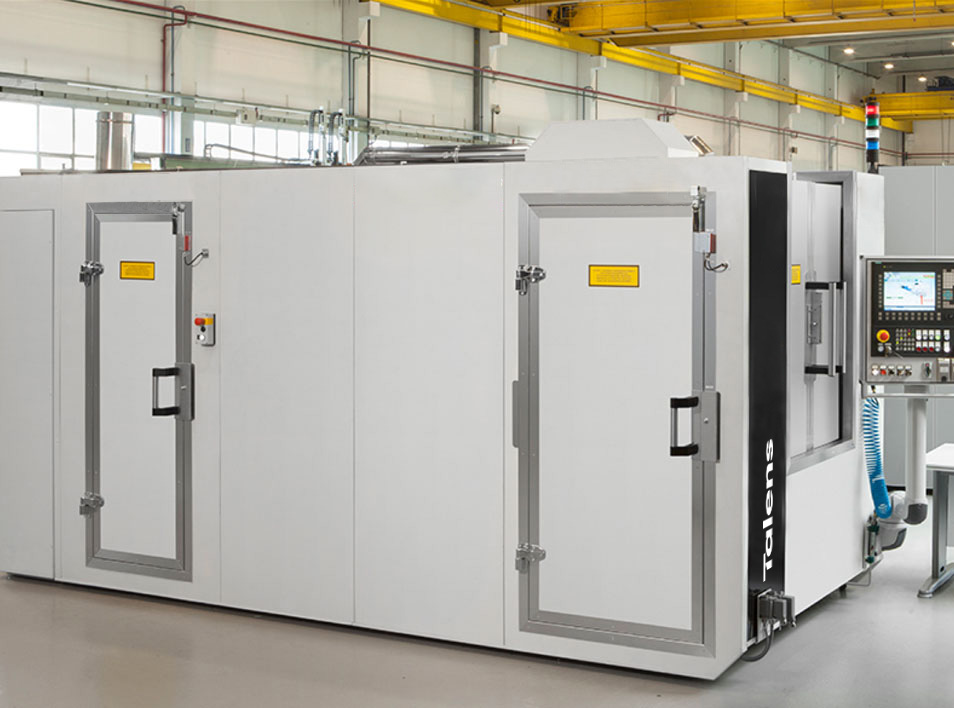

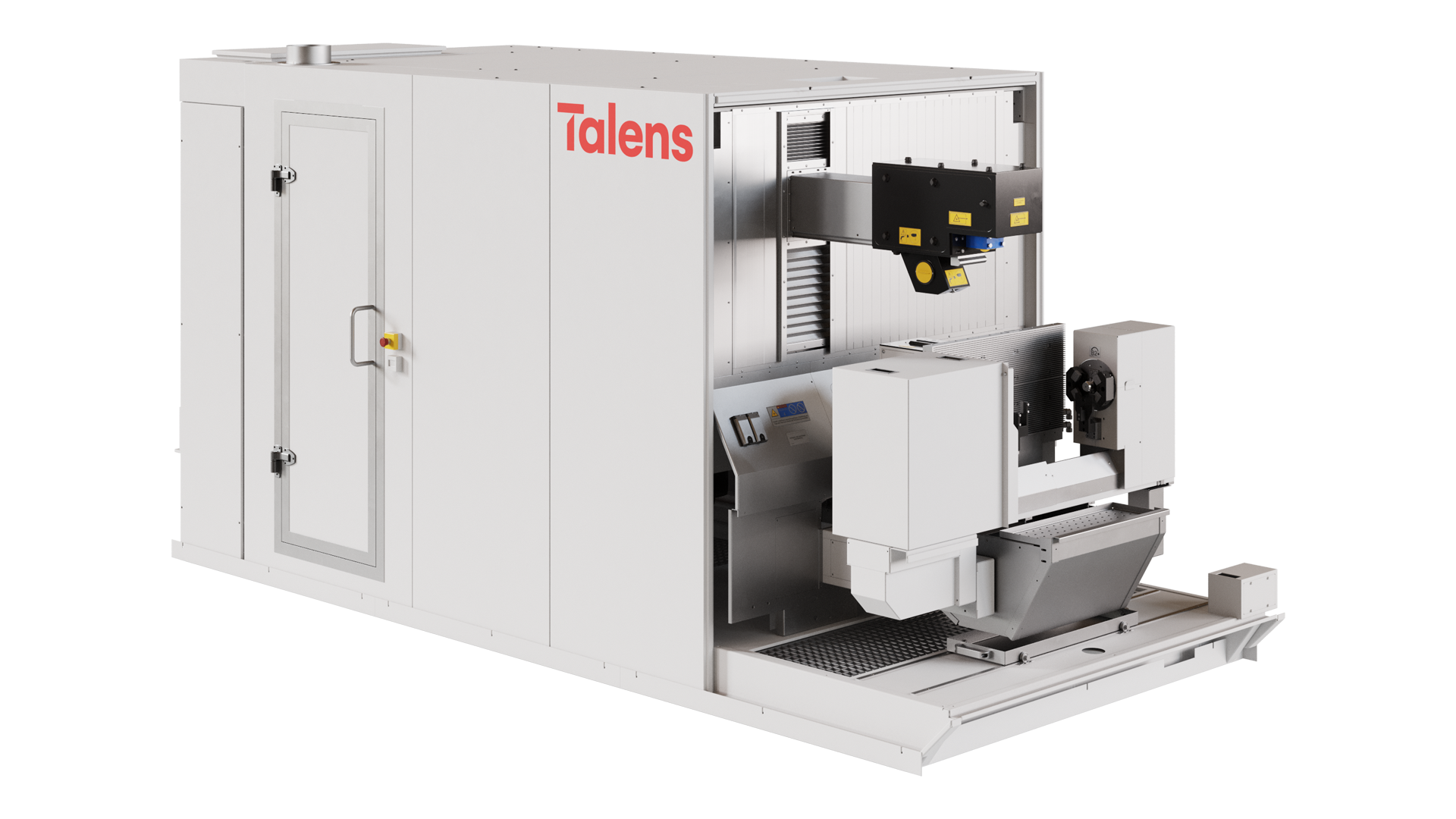

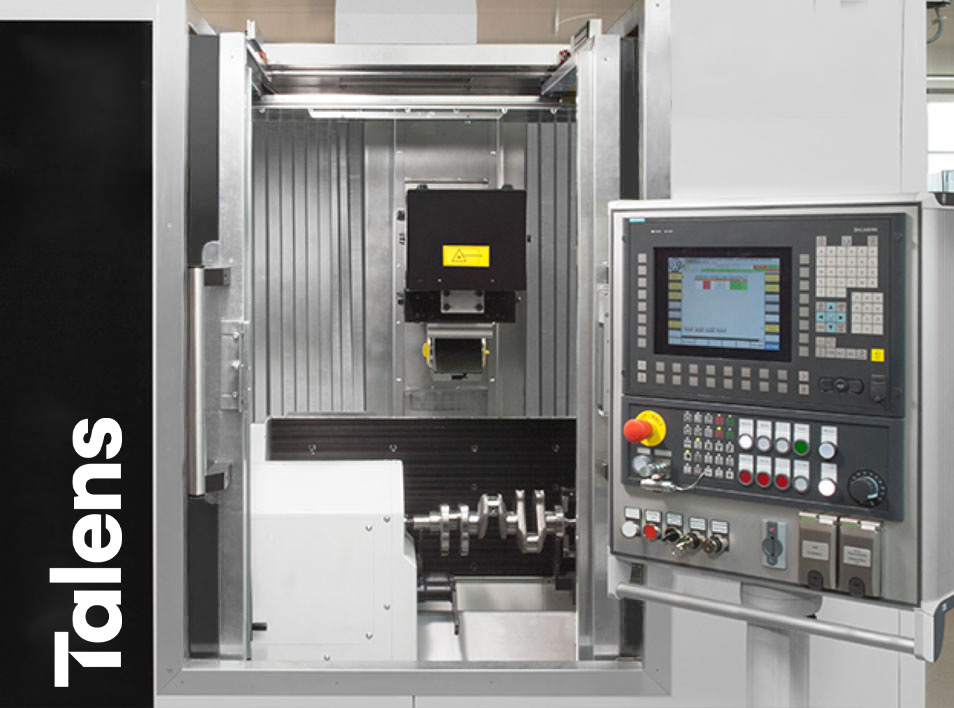

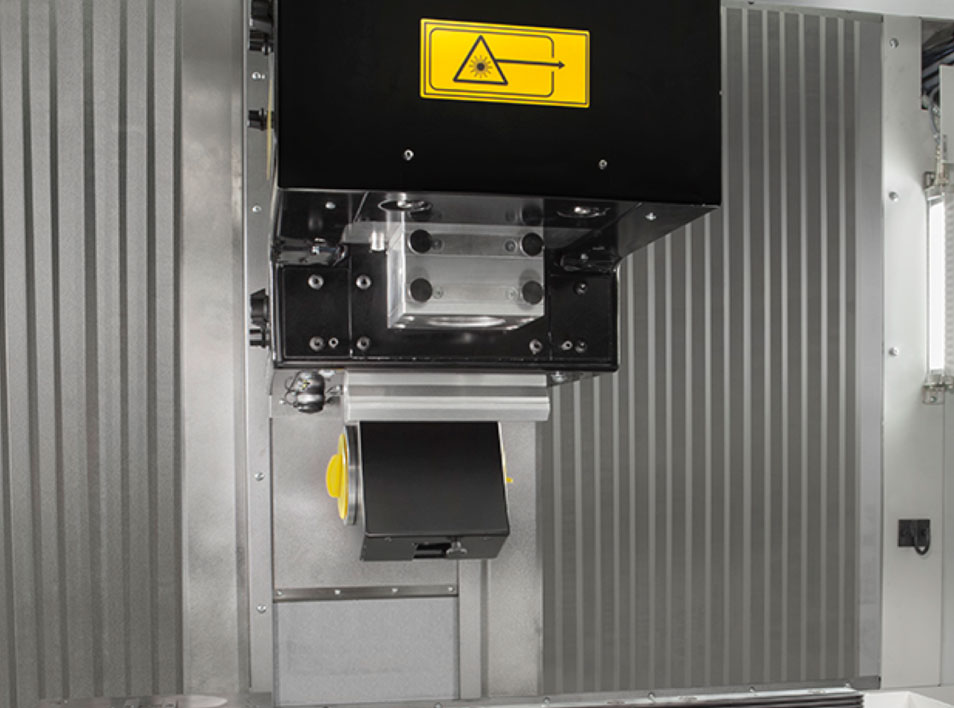

The Xr is a machine designed to offer our customers the highest flexibility. It includes one laser station to harden multiple parts just by changing the Talens part program.
Main features
Compact machine design.
Optimized flexibility.
- Model change with zero changeover through CNC program adjustment.
Scalable investment / volume.

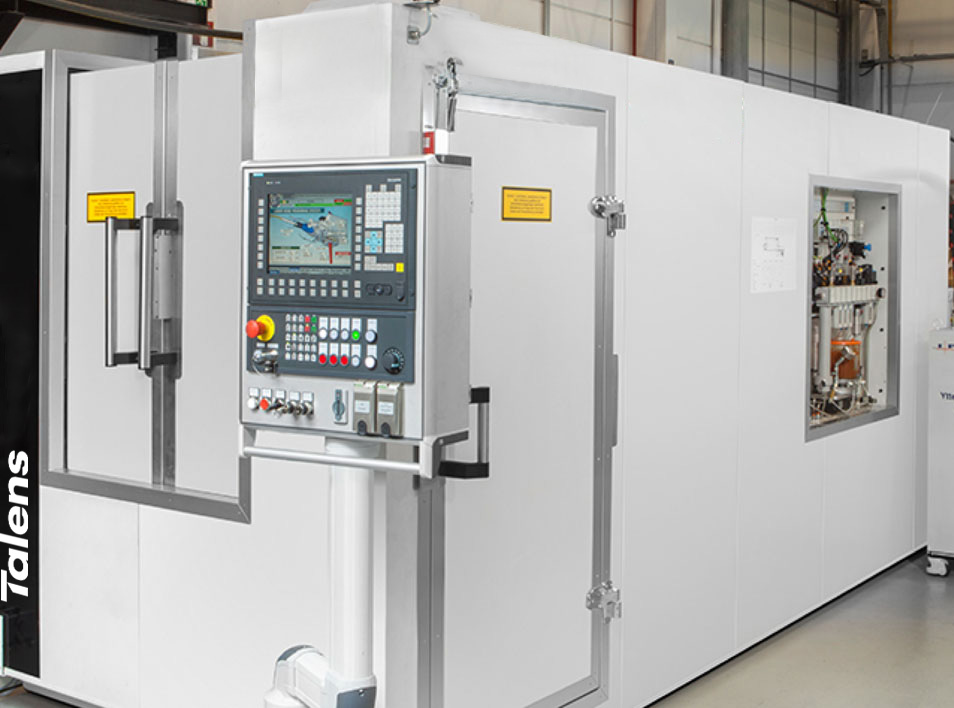

Easy access for maintenance.
- Access doors to the 3-axis units.
- Wheeled laser supply units.
Environmentally friendly.
- Pneumatic and electrical connection. No hydraulics needed.
Low secondary times.
- Laser units used approx. 90% of the cycle
Technical features
Part length
mm

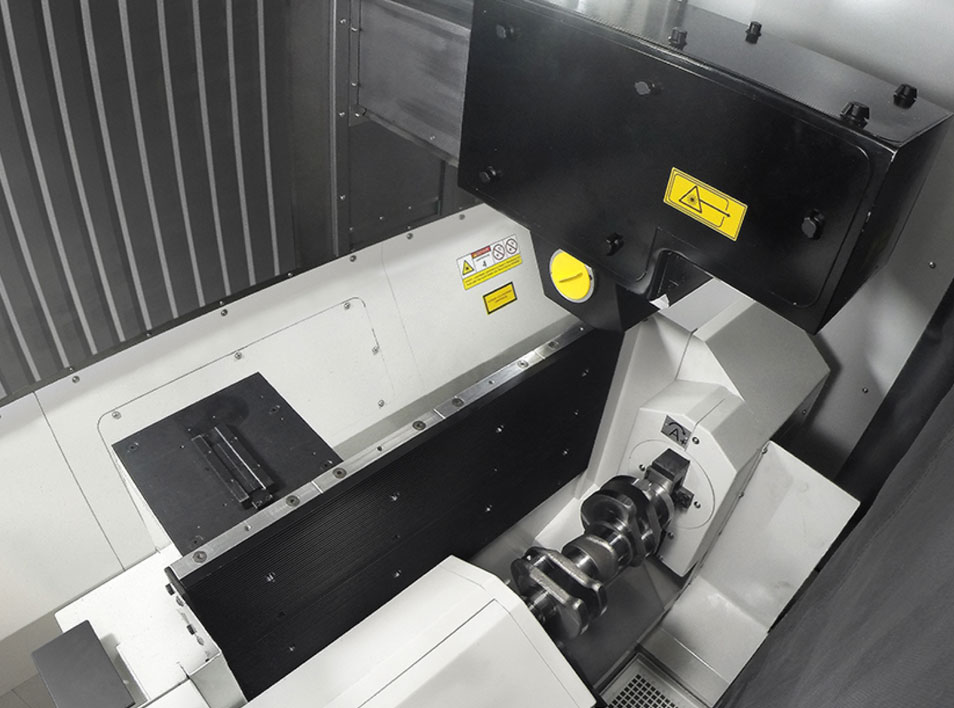

Flexible fixtures for parts up to 800mm
Working travels in X/Y/Z
mm
300/ 800 / 200
Feeds (max) in X/YZ
m/min
40 / 40 / 40
Aceleration (max) X/Y/Z
m/s
3 / 3 / 3
Guarding
Active in the working area
No. of fixtures
1
Laser type
Fiber / Diode
Power
kW
1 - 8
Total weight
kg
8,000
Dimensions
m
5.5 x 2.0 x 2.25
Related
applications
Engine
Transmission
Driveline
Dies
We can help you by applying our laser technology and experience
