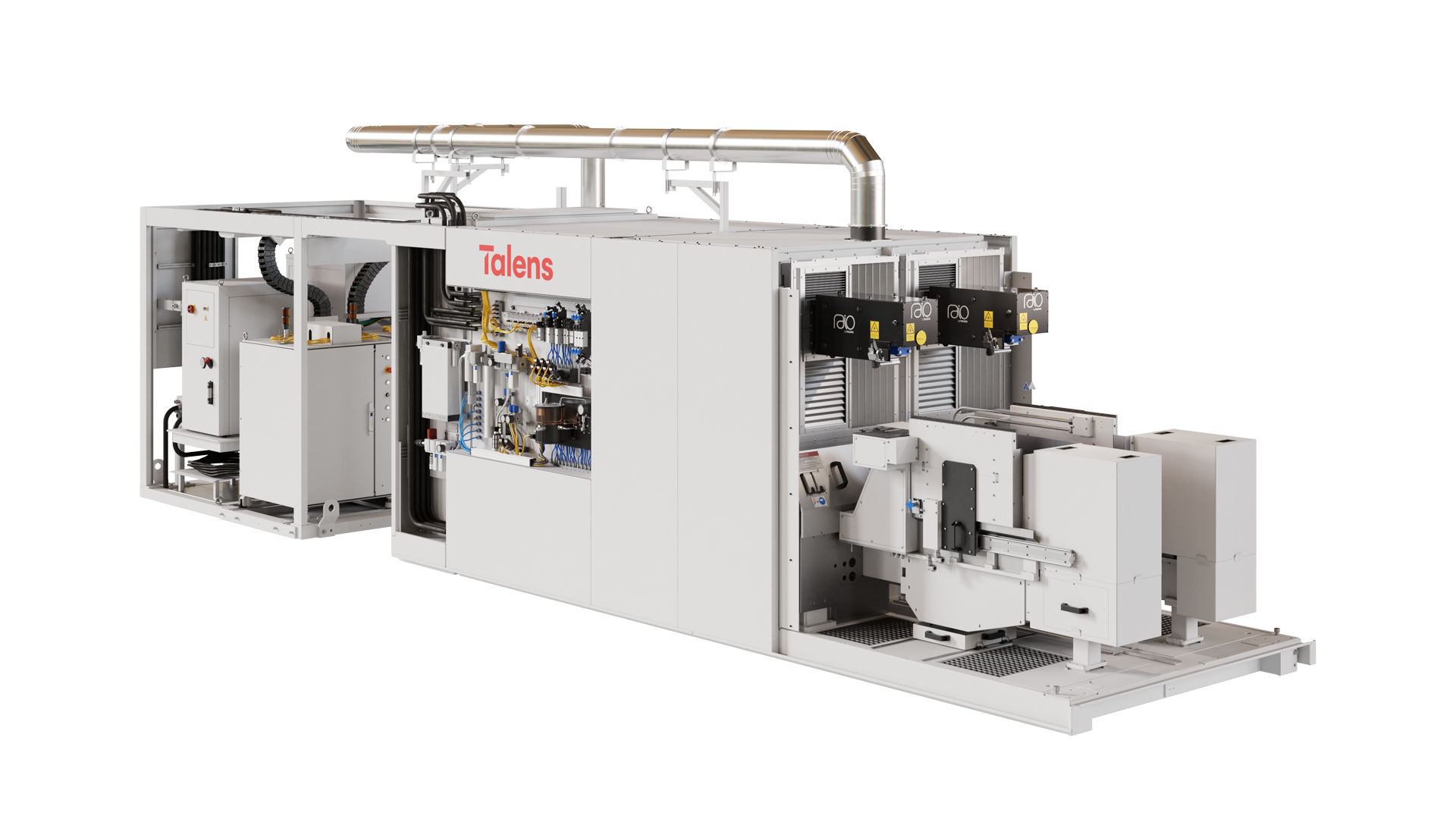

Xr Duo

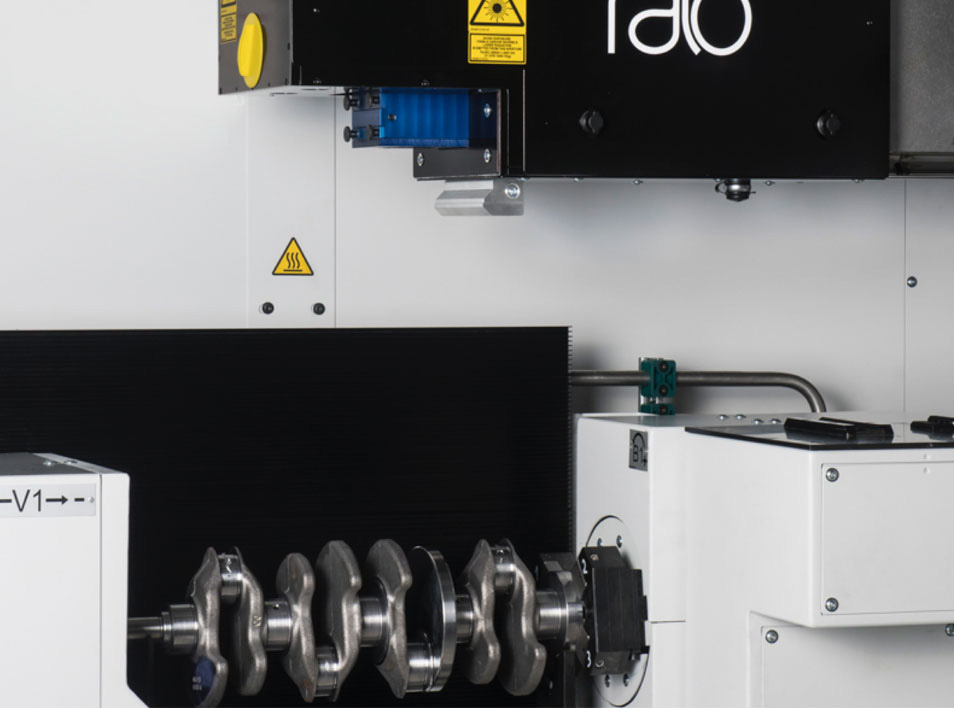

The Xr Duo is a machine designed to offer our customers the highest flexibility and productivity. It includes two laser stations to give a proper response to the high volume demands of the different industries for laser heat treatment processes.
Main features
Compact machine design.
Optimized flexibility.
- Model change with zero changeover through CNC program adjustment.
Independent units.
- Parts can be processed and load/unloaded independently on both stations.
Scalable investment / volume.
Easy access for maintenance.
- Access doors to the 3-axis units, and both stations.

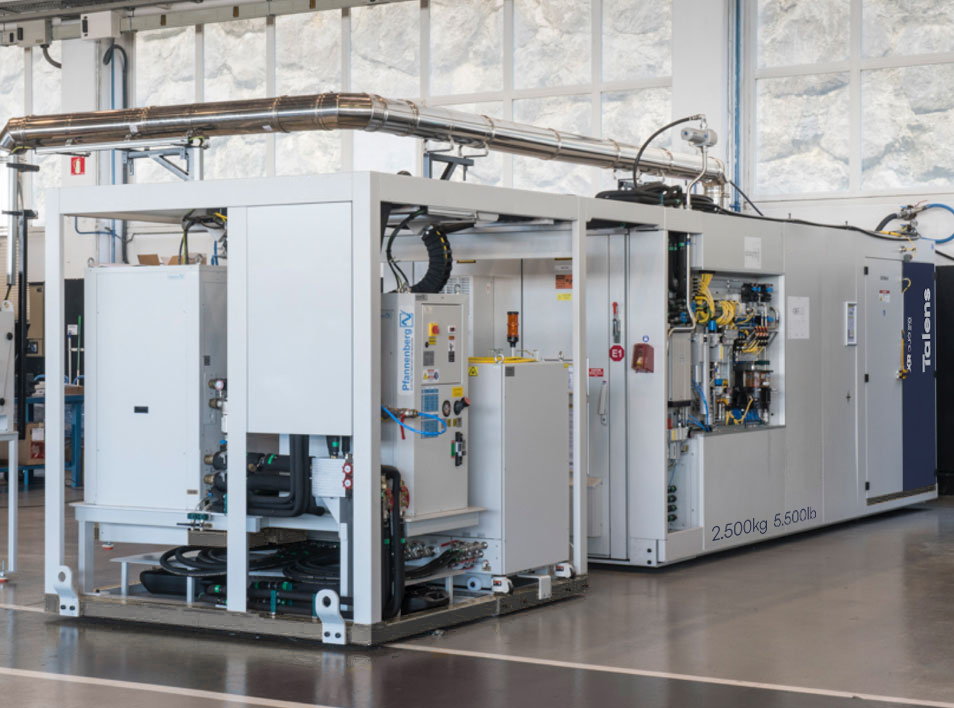

- Wheeled laser supply units.
Environmentally friendly.
- Pneumatic and electrical connection. No hydraulics needed.
Low secondary times.
- Laser units used approx. 90% of the cycle
Technical features
Part lenght
mm
Flexible fixtures for parts up to 800mm
Working travels in X/Y/Z
mm
300/800/200
Feeds (max) in X/Y/Z
m/min
40/40/40
Acceleration (max) X/Y/Z
m/s
3/3/3
Guarding
Active in the working area
No. of fixtures
2
Laser type
Fiber/Diode
Power
kW
1-8
Total weight
Kg
10.000
Dimensions
m
5.5 x 2.0 x 2.25
